Presentation renders and working exocad views. Everything shown here is de-identified.

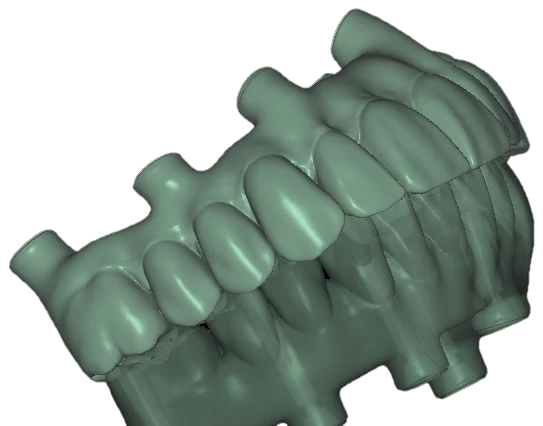

All-on-X Hybrid Design

Screw-retained full-arch hybrids designed from scans and CBCT: emergence profiles, screw access kept in the planned trajectory, and an intaglio shaped to the tissue — resolved before anything goes to production.

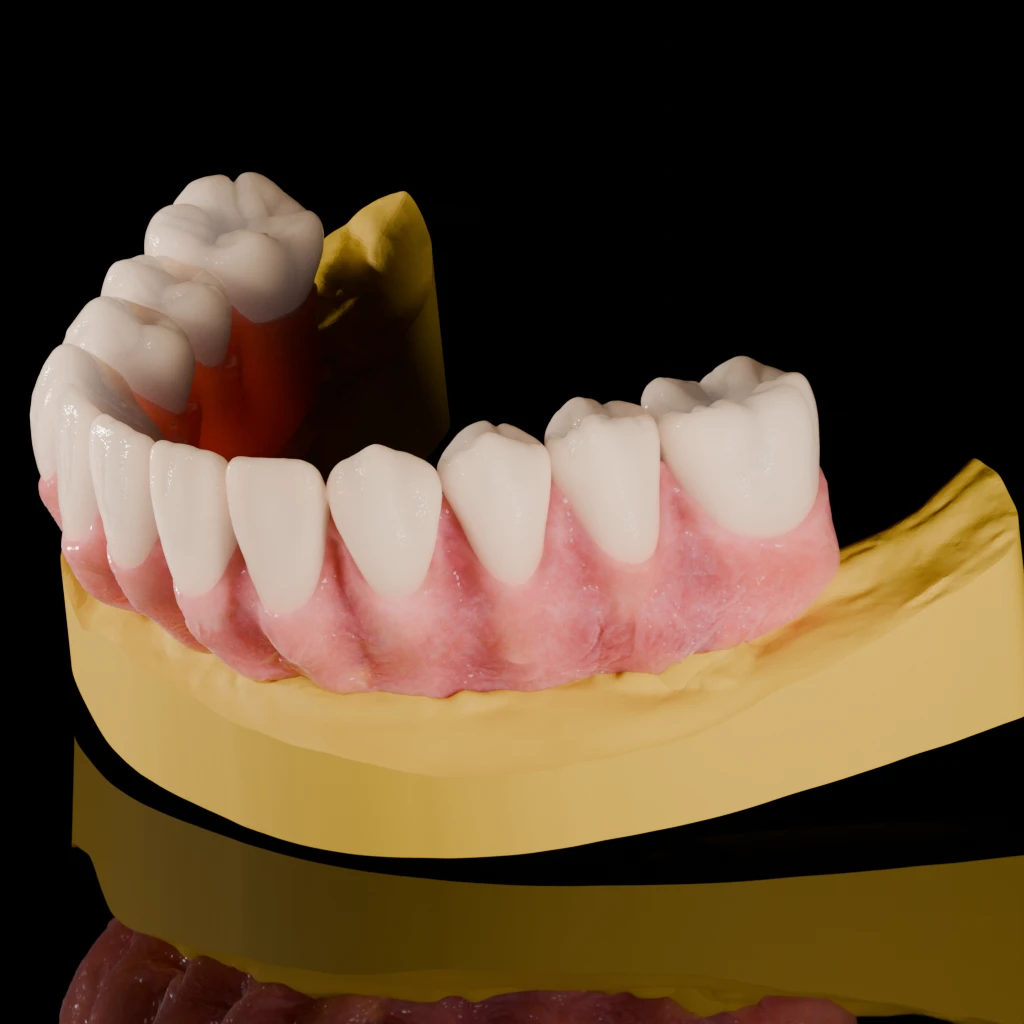

Photorealistic render of a lower arch on a gold model, three-quarter view from above, reflective floor — 01 · Lower arch on the model · three-quarter view · Blender

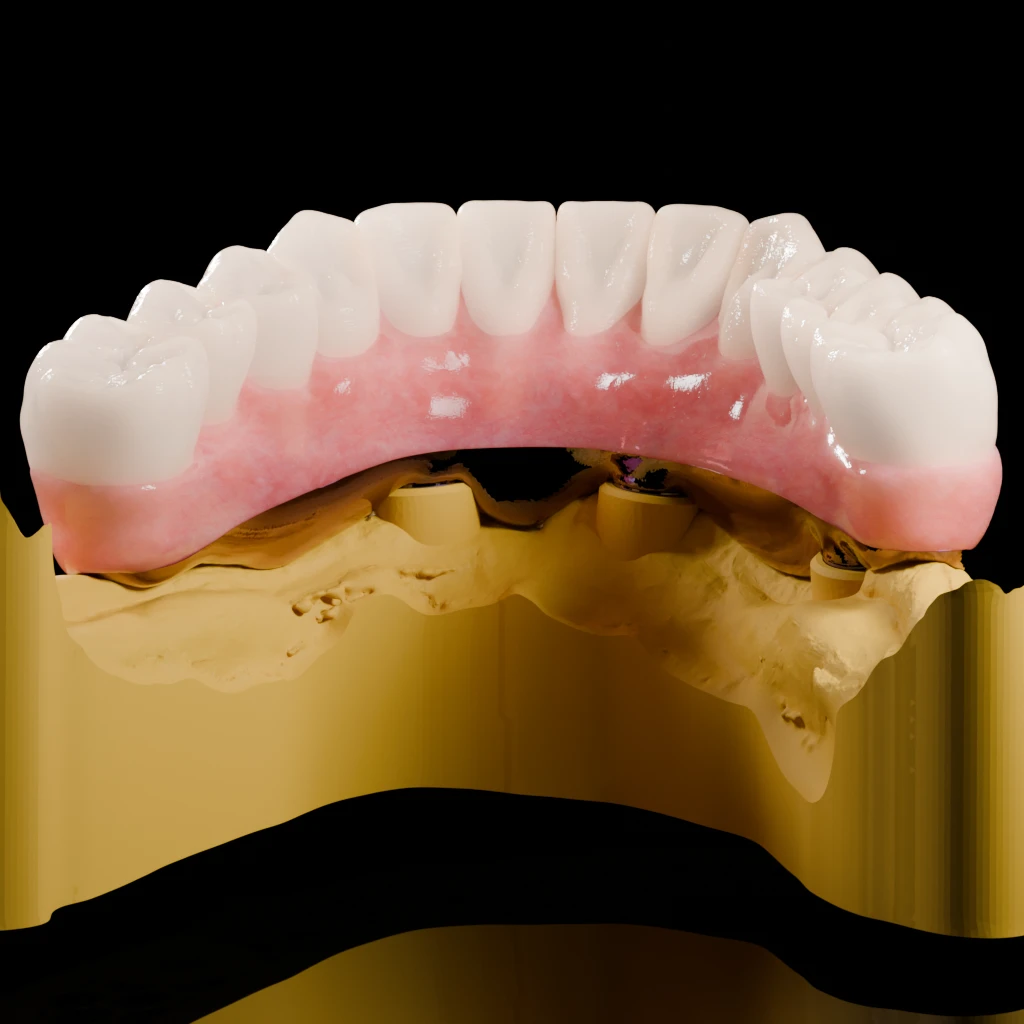

Photorealistic render of a lower full-arch hybrid prosthesis on a gold model with implant analogs, front view — 01 · Lower full-arch hybrid · gold model, implant analogs · Blender

Full-Arch + Scan Integration

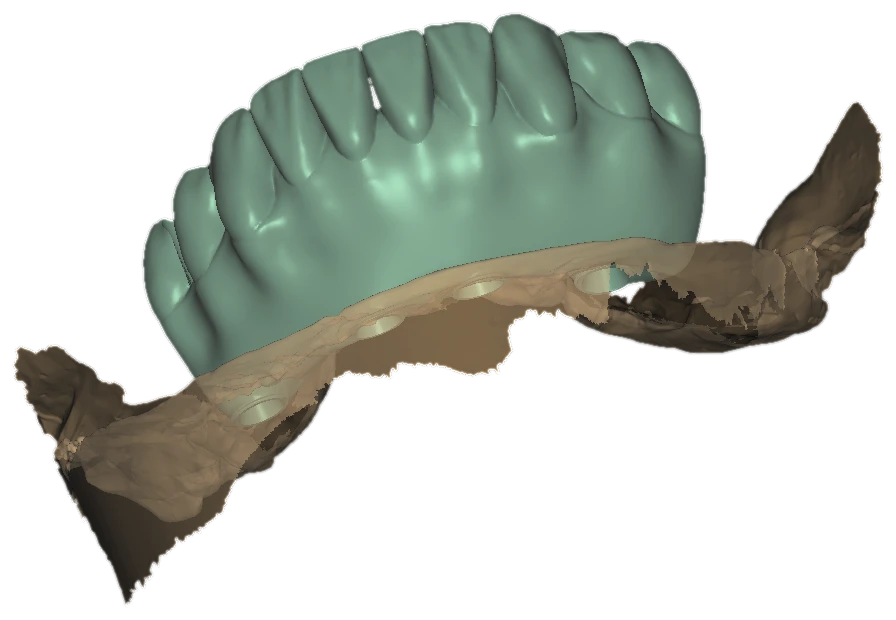

Full-arch design over a fragment of an intraoral scan, diagonal view, exocad cutout — 02 · Full-arch design over a scan fragment · exocad

The arch is built directly against the intraoral scan, soft tissue in view — tissue contact and emergence judged on real anatomy, not a bare model.

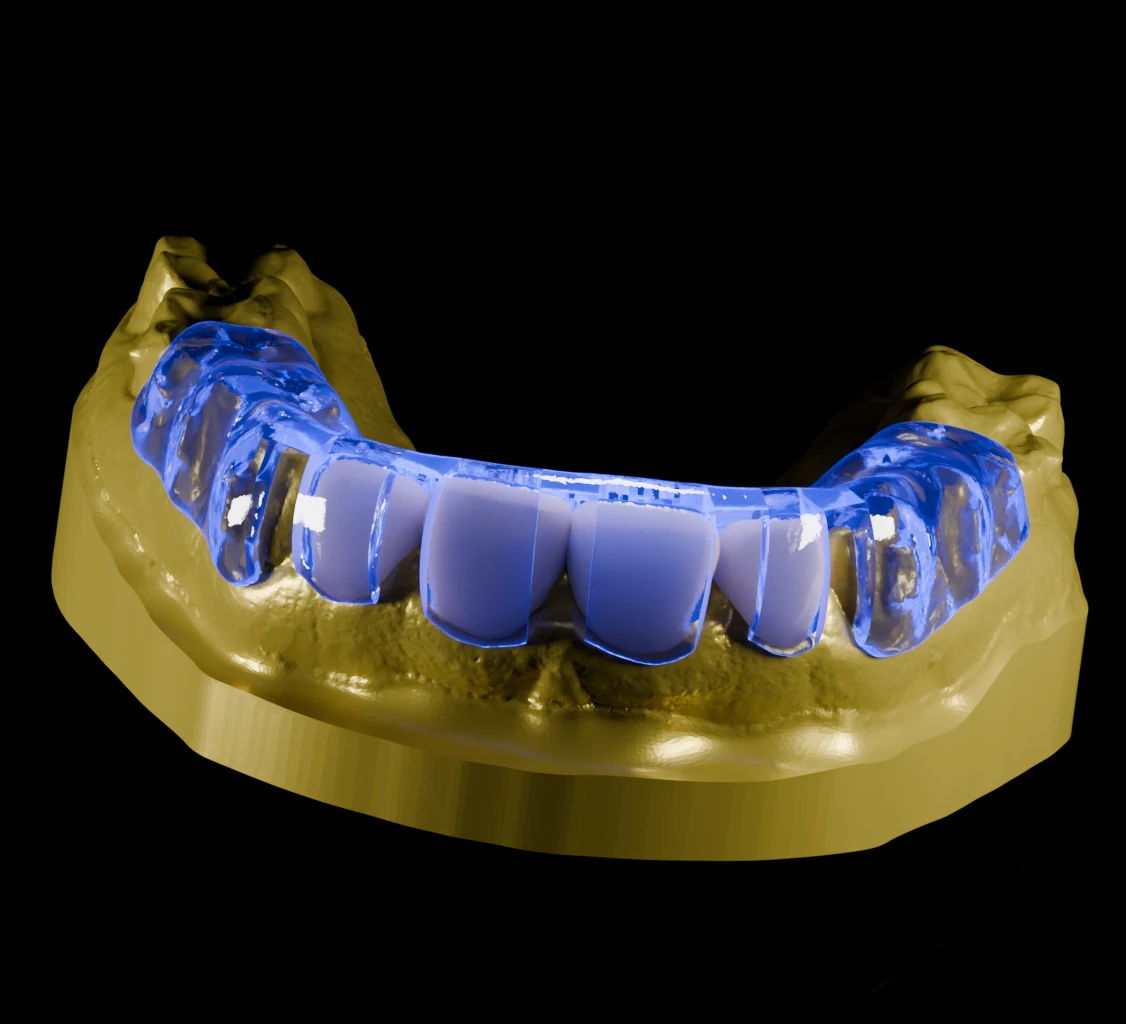

Reduction Guide

A printable guide that shows exactly how much structure has to go before the restorative space works. Seated over the crowns it was designed against, clearance readable through the material.

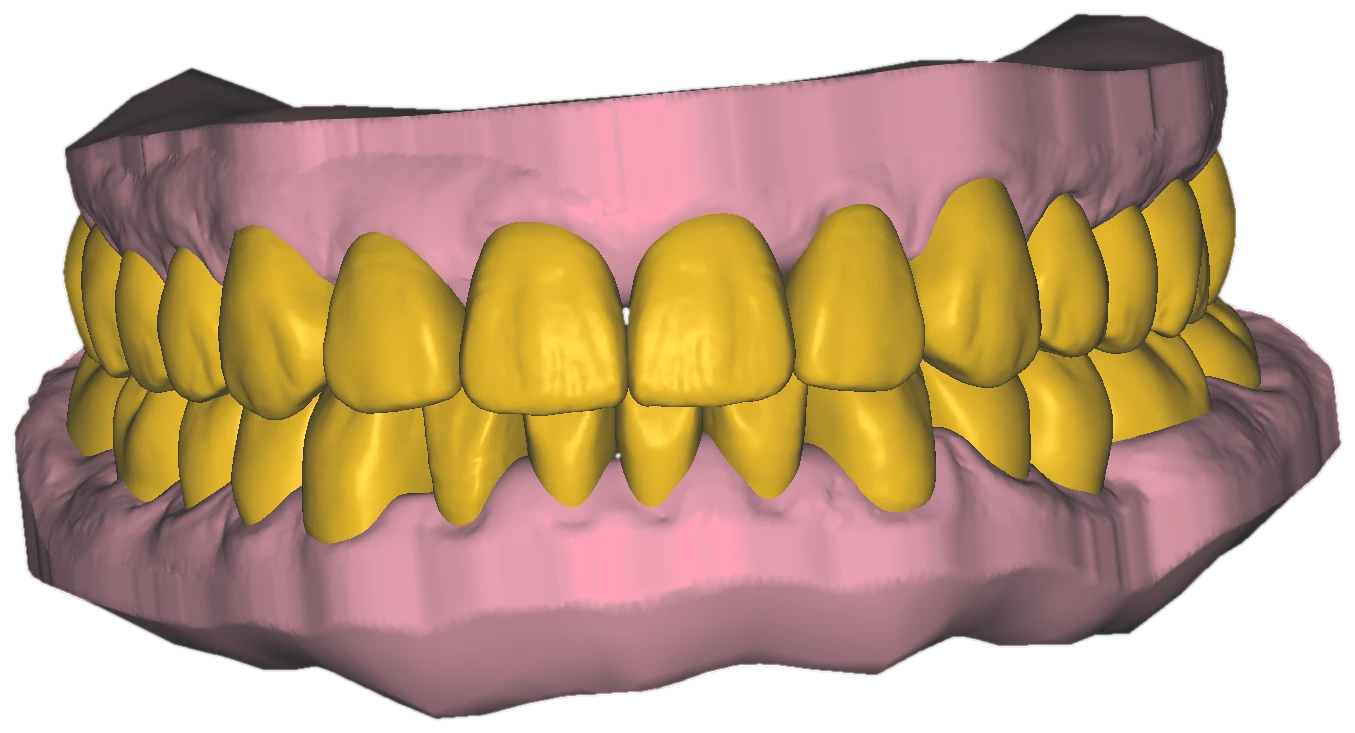

Diagnostic Wax-Up

Both arches waxed in occlusion on the model. The wax-up sets incisal edge position, vertical dimension, and the occlusal scheme — the reference every later stage is measured against.

Occlusion, Both Sides

The same arches in occlusion, checked from the left and the right lateral view.

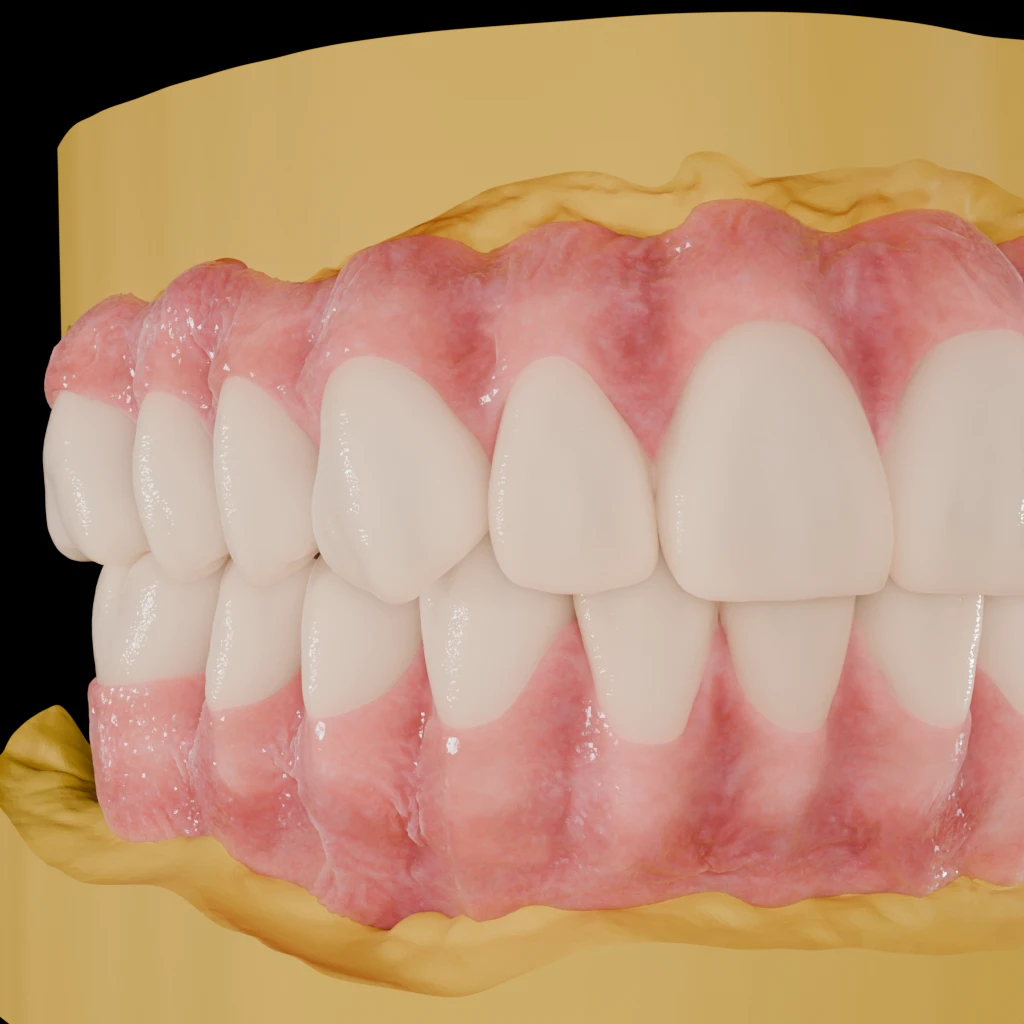

Photorealistic render of upper and lower arches in occlusion on yellow model bases, left lateral view — 05 · Arches in occlusion · left lateral · Blender

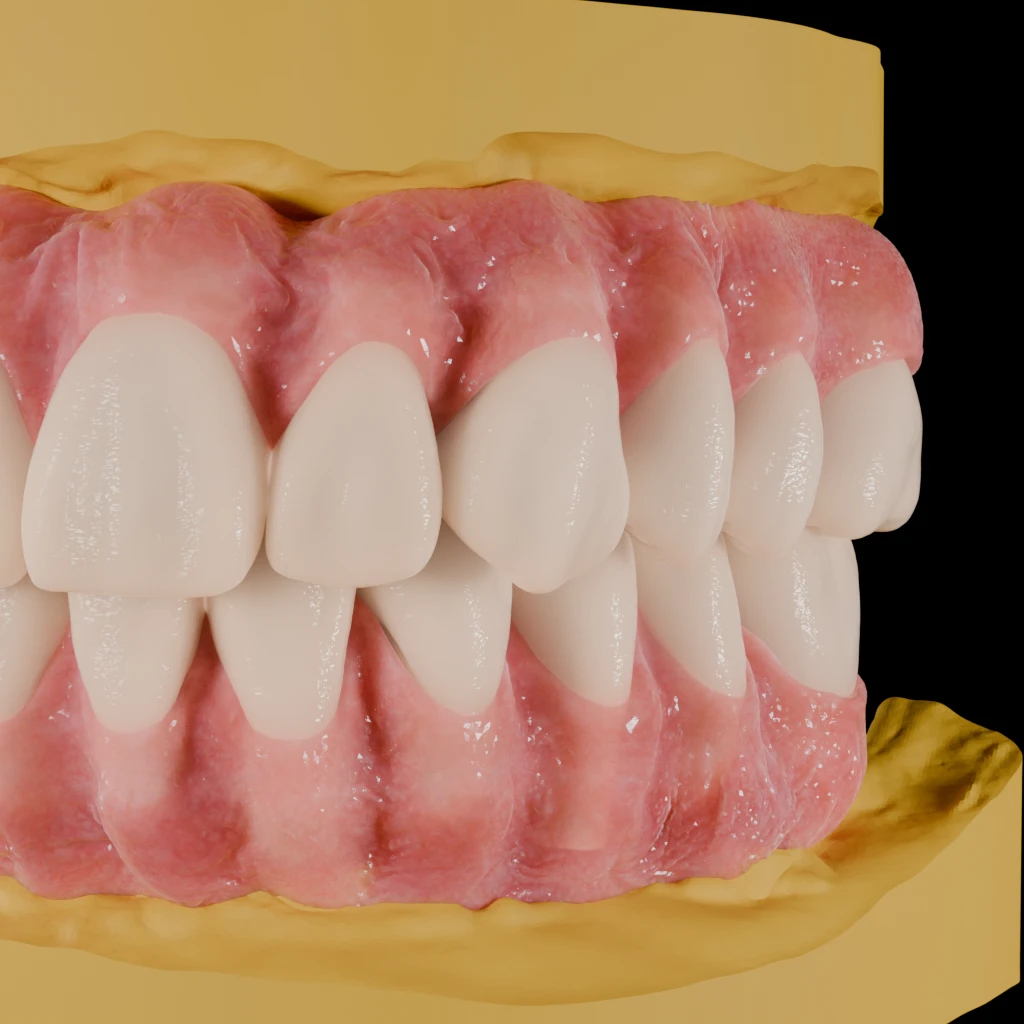

Photorealistic render of upper and lower arches in occlusion on yellow model bases, right lateral view — 05 · Arches in occlusion · right lateral · Blender

Occlusion Against the Scan

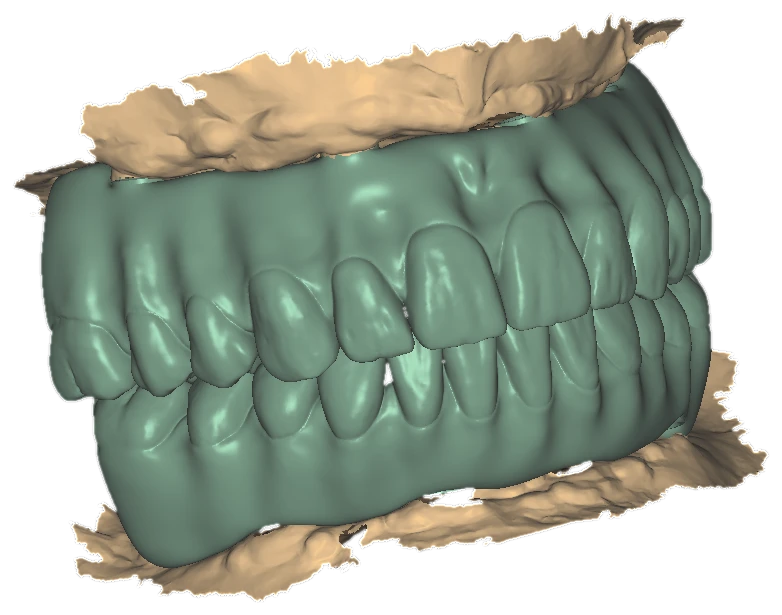

Upper and lower designed as one monolithic pair, seated in occlusion between the scan strips they were built from.

Upper and lower monolithic full-arch design in occlusion between two strips of intraoral scan, exocad cutout — 06 · Monolithic pair between scan strips · exocad

Esthetic Macro

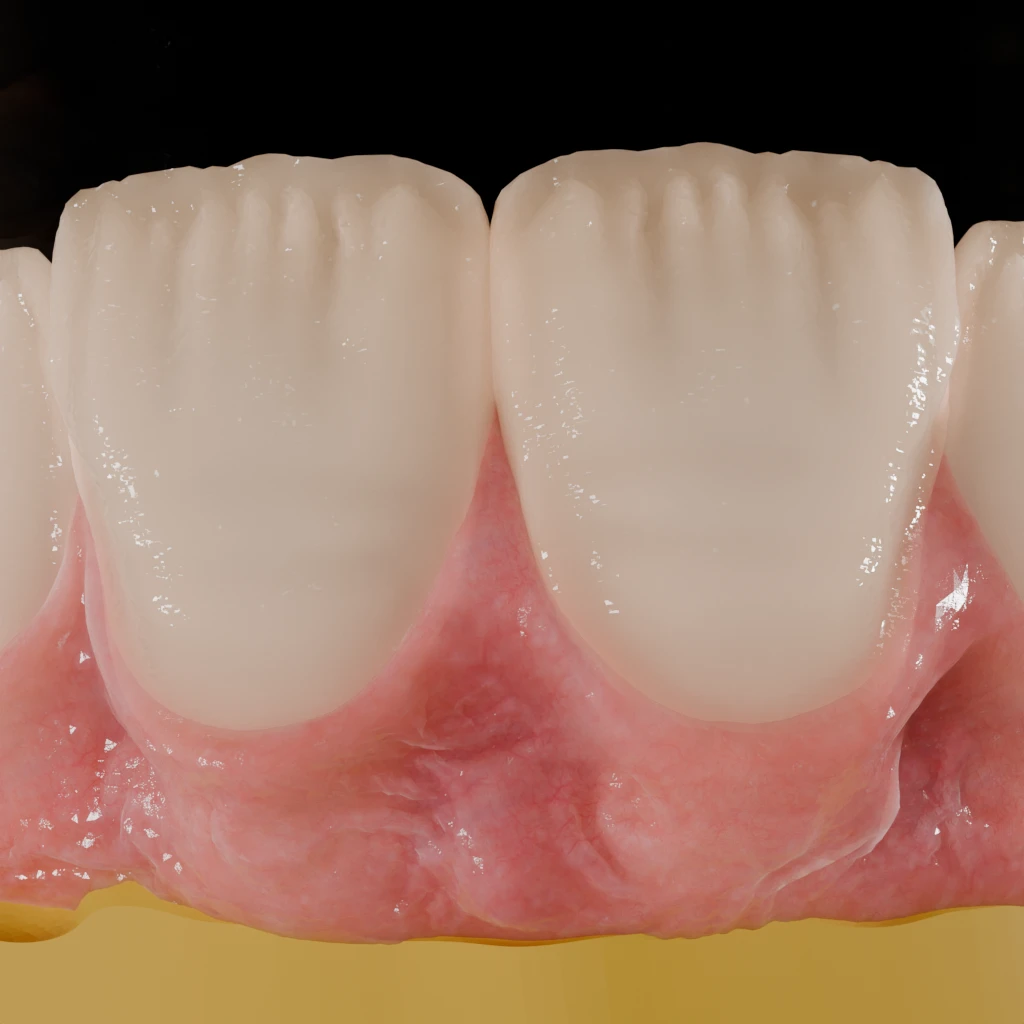

Extreme close-up of two central incisors with textured gingiva — the level of surface detail carried into presentation renders.

Photorealistic extreme macro of two central incisors with textured gingiva — 07 · Extreme macro · central incisors, textured gingiva · Blender

Preps, Temporaries, Overlay

Lower model with green prepared teeth, dark-gray temporaries and a transparent overlay, exocad cutout — 08 · Preps, temporaries, transparent overlay · exocad

Three states on one model: green preps, the existing temporaries in dark gray, and a transparent overlay above them.

Clinical before-and-after photography is added as patient authorization is obtained. Everything shown here is de-identified CAD work.
